Heatmaps and Ingress’ OPR Reviews

I spent some time with a Poor rating in OPR – part of Niantic’s game called Ingress – and decided to create a spreadsheet of all my reviews. It gives me the opportunity to create dinky charts and a heatmap showing where the portals I’ve reviewed are.

I have 3 sheets for input

  1. daily counts of reviews, agreements, disagreements and my Recon badge count.
  2. reviews I’ve done
  3. submissions

This post is going to focus on the Reviews.

I record almost every review – here’s what I leave out

  • edits
  • 1* reviews – the type of stuff that gets posted into G+ Portal Coal
  • Obvious dupes (I have dupes in my list but they weren’t dupes when I reviewed them)

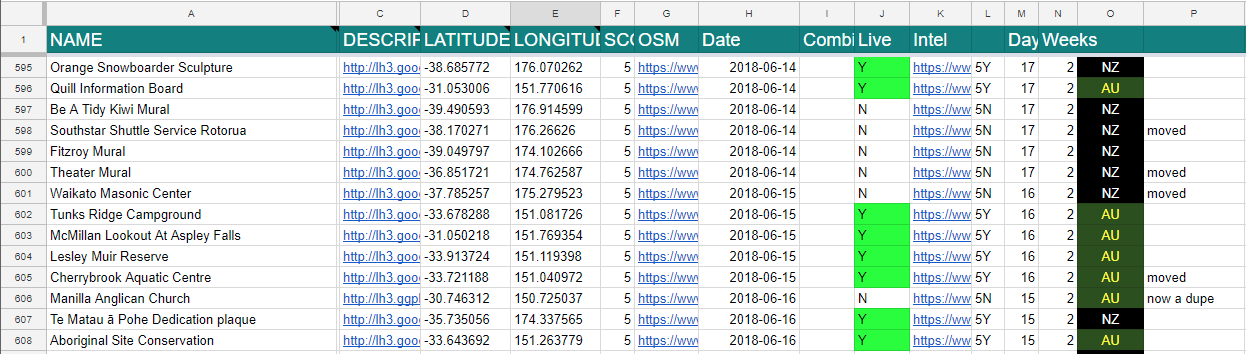

The information I record about each review

Most of what you see is generated by the sheet itself. I record

  • the name
  • the image address
    more important than you’d imagine, where a portal has been resubmitted with the same name, matching the image proves which version went live and which is the dupe.
  • the OSM link
  • the date
  • the country

I let conditional formatting do all the colours and functions create the latitude and longitude. The original layout was dictated by a Sheets plugin that I’ve since stopped using. I’d lay these columns out differently if I was starting over and I’d do away with the column with “5Y” o r “5N” in it and use smarter functions, but that’s housekeeping for another day.

What we’re interested in now is how to use the latitude and longitude to get a meaningful heatmap.

I have another tab called “Export” and it’s evidence of how many things I tried to get my heatmap working.

I’d done them before but Google tucked it’s code away and promoted it’s paid services so it took a wee while to dig it out. Here’s their link: WebMaps JavaScript API > Heatmap.

Save the source code of Google’s example – it’s our base code and we’re going to be editing it.

Back in the spreadsheet, we’ll open the Export tab and in a column set up a function to create this javascript:

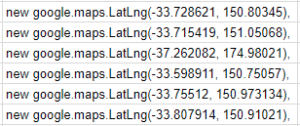

="new google.maps.LatLng("&'Portal Reviews'!D17&", "&'Portal Reviews'!E17&"),"

That gives me a column filled with all my review locations so which gets copied and pasted it into the Google example I’ve saved replacing their points.

Every time I viewed the heatmap I’d start out in San Francisco but as that wasn’t where I’m located I found the function initMap and changed the lat/lng of the “centre” (and the zoom).

map = new google.maps.Map(document.getElementById('map'), {
   zoom: 8,
   center: {lat: -36.859615, lng: 174.701026},
   mapTypeId: 'satellite'

Don’t be too fussy about what lat/lng you choose, I just picked one that was reasonably close to my home.

I wanted to increase the radius option too so that got a tweak in the changeRadius function.

From there it is a simple save of the file, open it in your browser and you have a submissions heatmap.

Here’s my heatmap


Edit: If you have $59 to spare you can speed things up by getting https://www.wpmapspro.com and importing from a csv file.
